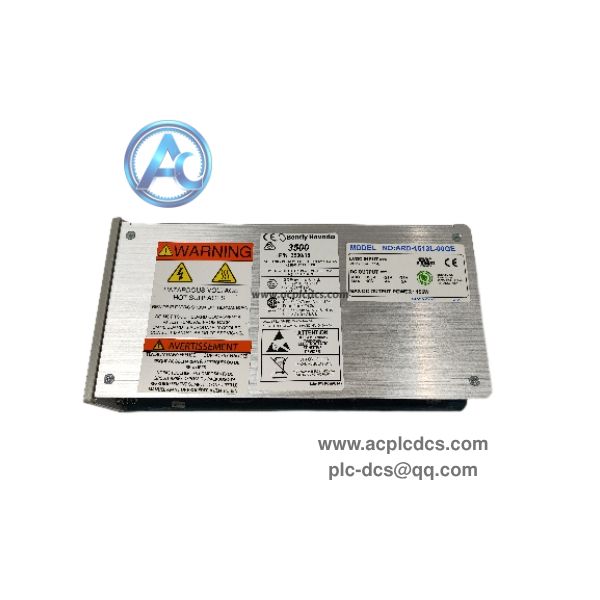

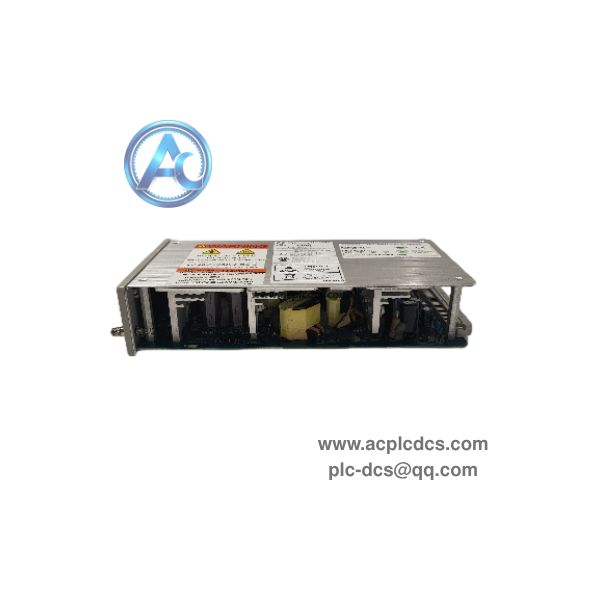

Bently Nevada 3500/15 114M5330-01 Power Supply Module in stock

Bently Nevada 3500/15 114M5330-01 is a half-height power supply module for the Bently 3500 series machinery protection system. It converts wide-range input power into stable internal rack voltage to feed all monitor, I/O and communication modules inside the 3500 rack.

This power module supports redundant dual power configuration and hot-swap function. It meets API670 machinery protection standard, widely used for turbine and compressor monitoring rack maintenance, spare parts replacement and machine protection system retrofit projects.

Data Parameters

• 1. Brand: Bently Nevada (Baker Hughes).

• 2. Model: 3500/15, Part No:114M5330-01.

• 3. Product Type: Half-height Rack Power Supply Module.

• 4. Product Series: 3500 machinery protection monitoring system.

• 5. Input Type: Wide range DC power input.

• 6. Mounting: Installed in designated left side slot of 3500 rack.

• 7. Redundancy: Support dual redundant power supply configuration.

• 8. Feature: Hot swappable without interrupting rack operation.

• 9. Compliance: API 670 standard for rotating machinery protection.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Receive external DC input and convert it into multiple stable DC voltages for all modules in 3500 rack.

• 2. Provide continuous power supply for monitor boards, I/O modules, TDI and sensor signal circuits.

• 3. Support redundant parallel operation, either single power unit can fully power the whole rack independently.

• 4. Enable hot-swap replacement, users can replace faulty power module without shutting down the monitoring rack.

• 5. Real-time self-diagnosis and power fault alarm to notify operators of power supply abnormal status.

Application Scenarios

• 1. Thermal power plant steam turbine 3500 rack power supply module replacement and maintenance.

• 2. Petrochemical plant centrifugal compressor machinery protection system hardware retrofit project.

• 3. Gas turbine, hydro-turbine and large rotating equipment condition monitoring spare parts renewal.

• 4. Oil & gas refinery and pipeline critical rotating machine monitoring cabinet spare parts inventory backup.

• 5. Legacy Bently 3500 series monitoring system overhaul and aging power supply module replacement project.

FAQ

• 1. Q: What is Bently Nevada 3500/15 114M5330-01?
      A: It is half-height DC power supply module dedicated for Bently 3500 rotating machinery protection rack.

• 2. Q: Does 3500/15 support hot swap?
      A: Yes, it supports hot swap, module replacement will not stop the whole monitoring rack operation.

• 3. Q: What standard does this power module comply with?
      A: It complies with API670 standard, designed for critical rotating machinery protection systems.
