Bently Nevada 3500/22M 138607-01 Data Interface Module in stock

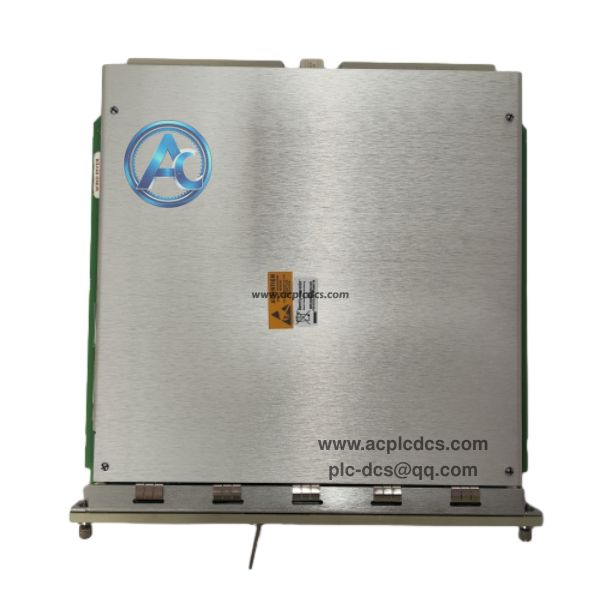

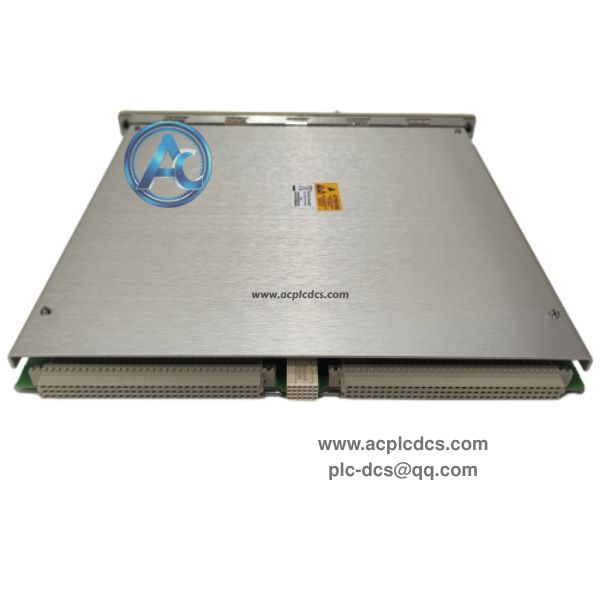

Bently Nevada 3500/22M 138607-01 is a transient data interface module for Bently Nevada 3500 machinery protection system. It collects high-speed waveform and transient vibration data from monitoring modules, and transmits raw dynamic signals to host software for spectrum analysis, orbit plotting and machinery fault diagnosis.

This module supports high-speed data capture and event trigger recording, equipped with communication interfaces for connecting monitoring workstations. It adopts hot-swap design and built-in self-diagnosis function, widely used for vibration monitoring cabinet maintenance, spare parts replacement and rotating machinery protection system retrofit projects.

Data Parameters

• 1. Brand: Bently Nevada (Baker Hughes).

• 2. Model: 3500/22M, Part Number:138607-01.

• 3. Product Type: Transient Data Interface Module.

• 4. Product Series: 3500 Machinery Protection System.

• 5. Function: High-speed transient waveform & vibration data acquisition.

• 6. Data Output: Transmit raw dynamic data to diagnostic workstation.

• 7. Trigger Mode: Event-based capture for abnormal machine vibration events.

• 8. Feature: Hot swappable without system shutdown.

• 9. Diagnosis: Built-in hardware and communication fault detection.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Capture high-speed transient waveform data from vibration and position monitoring modules inside the rack.

• 2. Transfer raw dynamic signal data to diagnostic software for spectrum, orbit and time waveform analysis.

• 3. Trigger automatic data recording when preset machine alarm or trip events occur for post-fault analysis.

• 4. Provide communication channel between 3500 rack and workstation for machinery condition diagnostics.

• 5. Continuously run hardware self-test and report communication or module hardware faults via system alarm.

Application Scenarios

• 1. Thermal power plant turbine vibration monitoring system spare parts replacement and cabinet maintenance.

• 2. Oil & gas industry large compressor rotating machinery fault diagnosis system upgrade project.

• 3. Petrochemical plant critical rotating equipment online transient data monitoring spare parts renewal.

• 4. Steel and paper mills high-value rotating equipment protection system spare inventory backup.

• 5. Legacy Bently Nevada 3500 machinery monitoring system aging transient interface module replacement project.

FAQ

• 1. Q: What is Bently Nevada 3500/22M 138607-01?
      A: It is transient data interface module for Bently Nevada 3500 machinery protection system, used for high-speed vibration waveform acquisition.

• 2. Q: What is the difference between 3500/22M and regular monitoring modules?
      A: It does not provide protection trip signals, it is dedicated to capture high-speed waveform data for machinery fault diagnosis.

• 3. Q: Can 3500/22M be hot swapped?
      A: Yes, it supports hot swap, module replacement will not stop the whole machinery monitoring system.
