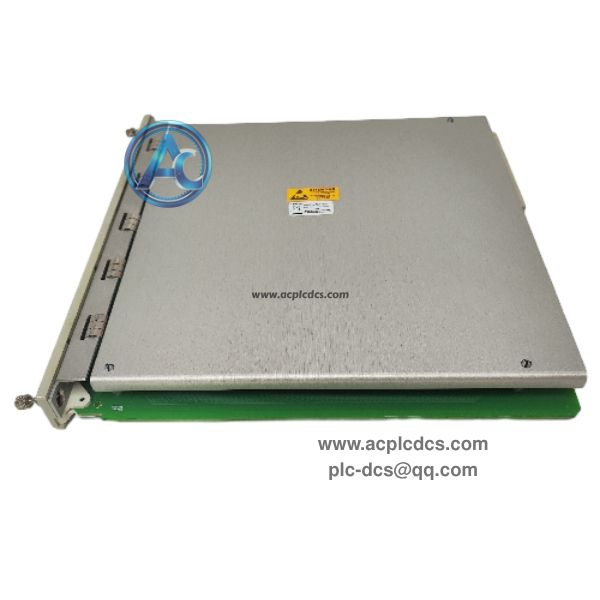

Bently Nevada 3500/32 125712-01 Relay Output Module in stock

Bently Nevada 3500/32 125712-01 is a 4-channel relay output module for the Bently Nevada 3500 machinery protection system. It receives alarm and trip signals from monitoring modules and outputs dry relay contacts to external systems for local annunciators, PLC interlock and emergency trip circuits of rotating machines.

This module features isolated relay contacts and hardware fault detection, supporting hot-swap operation without interrupting the rest of the monitoring rack. It is widely used for turbine protection cabinet maintenance, spare parts replacement and rotating machinery safety monitoring retrofit projects.

Data Parameters

• 1. Brand: Bently Nevada (Baker Hughes).

• 2. Model: 3500/32, Part Number:125712-01.

• 3. Product Type: 4-Channel Relay Output Module.

• 4. Product Series: 3500 Machinery Protection System.

• 5. Channel Count: 4 independent relay output channels.

• 6. Output Type: Isolated dry contact relay outputs.

• 7. Function: Machine alarm and trip contact output.

• 8. Feature: Hot swappable without system shutdown.

• 9. Diagnosis: Built-in module hardware and communication fault monitoring.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Receive alarm and trip logic signals from other monitoring modules inside the 3500 rack.

• 2. Actuate isolated dry relay contacts to drive external alarm lights, annunciators and interlock circuits.

• 3. Provide hardwired trip contact signals for turbine, compressor and pump protection interlock systems.

• 4. Continuously perform hardware self-test and report module faults via rack diagnostic system.

• 5. Support hot-swap replacement during operation for convenient on-site maintenance.

Application Scenarios

• 1. Thermal power plant turbine vibration protection cabinet relay module replacement and maintenance.

• 2. Oil & gas compressor safety interlock and alarm output system upgrade project.

• 3. Petrochemical plant large rotating machinery protection hard-contact signal spare parts renewal.

• 4. Steel and paper factories critical equipment alarm & trip backup inventory.

• 5. Legacy Bently Nevada 3500 machinery monitoring system aging relay module replacement project.

FAQ

• 1. Q: What is Bently Nevada 3500/32 125712-01?
      A: It is 4-channel relay output module for Bently Nevada 3500 machinery protection system, used for alarm and trip dry contact output.

• 2. Q: What loads can the relay contacts drive?
      A: The dry contacts connect to external annunciators, PLC digital inputs and hardwired trip interlock loops.

• 3. Q: Can 3500/32 be hot swapped?
      A: Yes, it supports hot swap, module replacement will not shut down the whole 3500 monitoring rack.
